[Premium XC] 29" Mountain Bicycle Carbon Rim 27mm 280g

  • Unit Price: 199 USD

  • Price in reward points: 19900
  • [Premium XC] 29" Mountain Bicycle Carbon Rim 27mm 280g



Introduction

The carbon fiber bicycle industry has been innovating and advancing all the time. Being lighter and stronger has always been the pursuit of the professional bicycle industry, especially for the mountain rims for XC (Cross Country) riding , where riders have extreme weight requirements.

In 2017 we first tried to use Toray T800 carbon fiber material and to improve the production process, reducing a weight of 60g for the XC mountain rims, which is a huge improvement. In order to further meet the market's more performance needs and size preferences for light weight mountain rim, we redesigned the shape of ultralight mountain rims from the year 2020 to 2021. Here comes with the mountain bike rim UM Series, including the NXT29UM27, NXT29UM30, NXT29UM32 and NXT29UM35 rims.

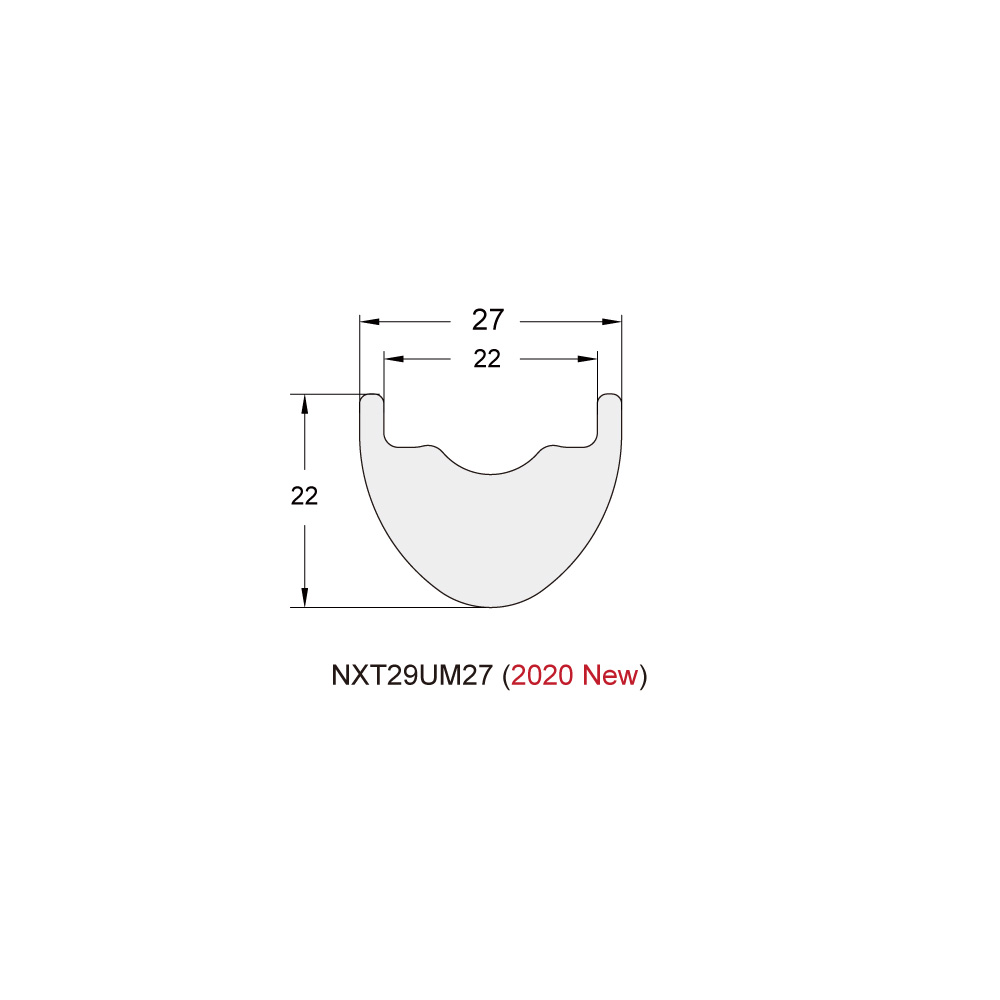

The weight of model NXT29UM27 is only 280g. The profile drawing of this rim is as below.

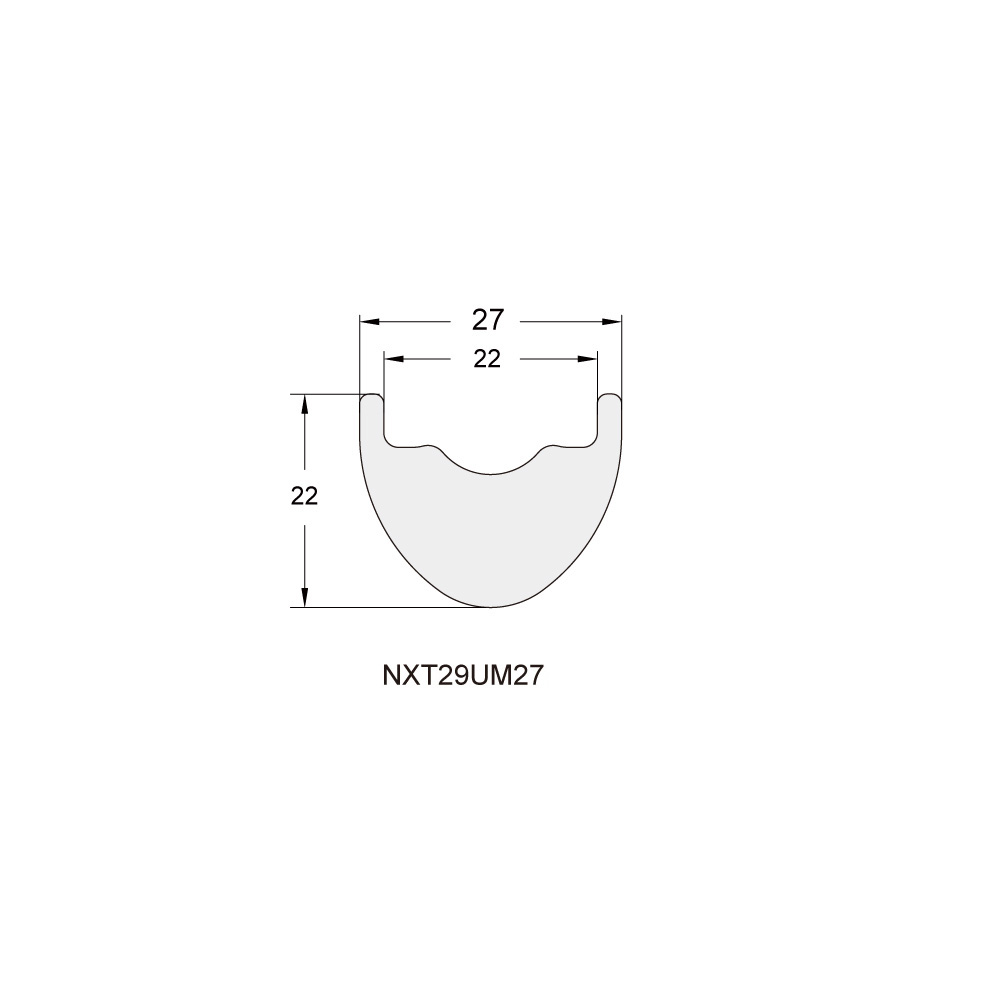

Mountain Bicycle Carbon Rim Profile Drawing NXT29UM27

The tire size for this model of rim is recommended at 1.5" ~ 2.0". The tire pressure is recommended at 25 ~ 46 psi.


What's in the Box

Carbon Rim(s)

Documentation


Learn more

What is the difference between weaves UD, 3K and 12K?

What is Free Coating Manufacturing (FCM) process?

What is the Difference between Ultralight, Premium and Standard Edition?

What is ERD (Effective Rim Diameter)?

How much spoke tension should I use?


Basic

  • Code: NXT29UM27
  • Rim Type: Mountain Bike (Clincher, Hookless)
  • Materials: Toray T800 + T700 Carbon Fiber
  • Edition: Premium Edition
  • ASTM Classification: Condition 3
  • Warranty: 3 Years
  • Release Time: June 2020

Specification

  • Size: 29"
  • BSD (Bead Seated Diameter): 622mm
  • ERD (Effective Rim Diameter): 596mm
  • Drillings: 24, 28, 32
  • External Width: 27mm
  • Internal Width: 22mm
  • Rim Height: 22mm
  • Weight: 280g
  • Valve Hole Diameter: 6.5mm (Presta)
  • Spoke Holes Diameter: 4.5mm
  • Spoke Holes Angle: ± 6°
  • Assembly Hole Diameter: 7.5mm
  • Drain Holes: No (leave a note if you prefer Drain Holes)
  • Tubeless Compatible: Yes

Recommendation

  • Tire Size: 1.8 ~ 2.2"
  • Tire Pressure: 25 ~ 46 psi
  • Spoke Tension: 100 ~ 130kgf
  • Max System Weight: 120Kg XC / 175Kg (Gravel)

Appearance

  • Carbon Weave Availability: UD
  • Finish: Free Coating / Matte / Glossy

Application

  • application: Cross Country, Marathon, Endurance Cross Country, Trail, Gravel
