[Gravel 6-Spoke] Wide (25mm Int) Gravel Bicycle Carbon Wheelset 40mm 1520g (Front+Rear)

  • Unit Price: 1,360 USD

  • Price in reward points: 136000



Introduction

Over the years, NEXTIE has been committed to making the best carbon fiber bicycle wheels, especially the continuous improvement of gravel wheels, which has been recognized and favored by many fan customers from all over the world. There have been constant suggestions from customers whether we could develop an Integrated gravel wheelset. We love to listen to riders and develop the products they love. After months of research, development and testing, now we release the gravel wheelset NXT40CGX-6S. The weight of the wheels (front + rear) is 1520g (Upgrade 2024).

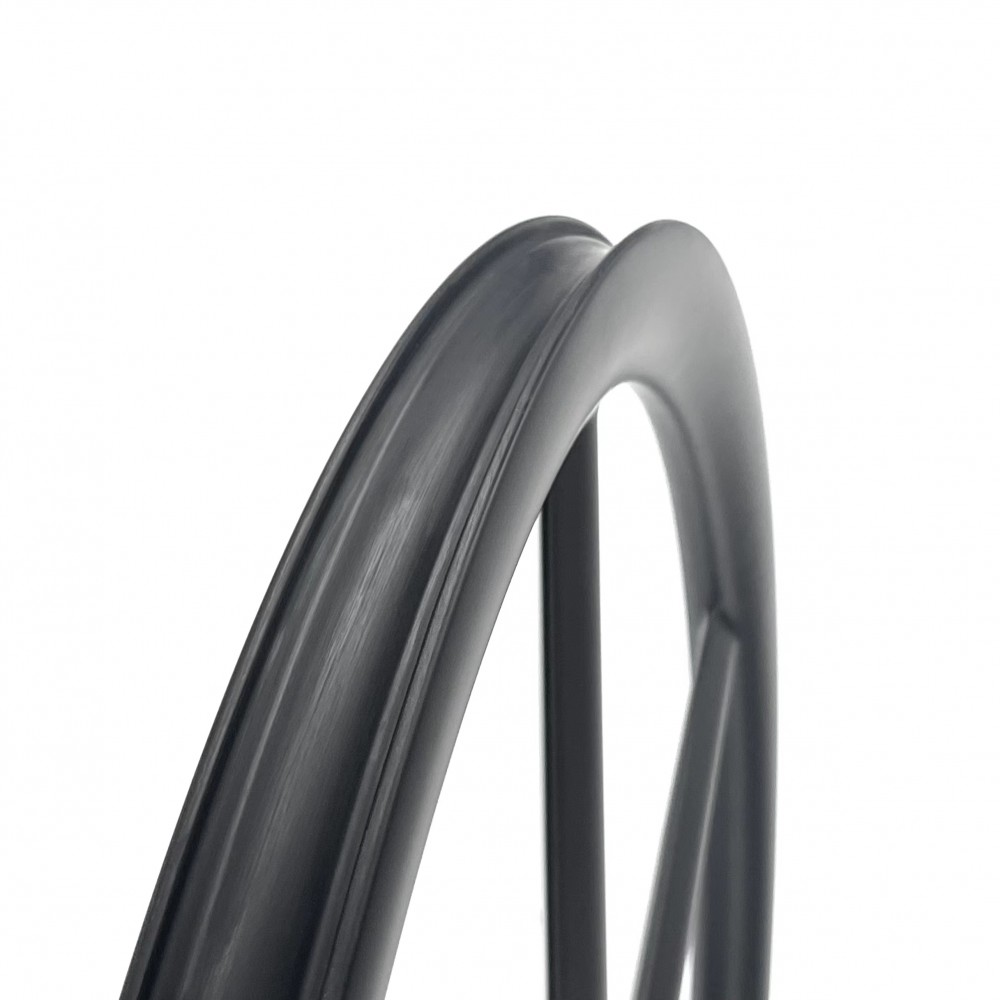

6-Spoke Carbon Gravel Bicycle Wheels

The spokes of the 6-spoke wheelset are all aerodynamically designed, which can effectively break the wind and reduce the riding resistance when riding. The wheels can all be equipped with DT350 or DT240 hubs. Especially, the 6-spoke wheelset can be equipped with our newly developed self-owned brand hub Rollingstar. For more information about Rollingstar hubs, you may view this page: Rollingstar-II-Hubs

The tire size for this model of rim is recommended at 33 ~ 50mm Road / 33 ~ 40mm Cyclocross / 33 ~ 62mm Gravel. The tire pressure is recommended at 29 ~ 61psi Road / 24 ~ 39psi Cyclocross / 22 ~ 58psi Gravel.


What's in the Box

Front & Rear Complete Wheels

2 x Tubeless Valve Stem

Documentation


Learn more

What is the difference between weaves UD, 3K and 12K?

What is Free Coating Manufacturing (FCM) process?

What is the Difference between Ultralight, Premium and Standard Edition?

What is ERD (Effective Rim Diameter)?

How much spoke tension should I use?


Basic

  • Code: NXT40CGX-6S
  • Rim Type: Clincher (Hookless)
  • Materials: Toray T700 + T800 Carbon Fiber
  • Warranty: 3 Years
  • Release Time: May 2022

Specification

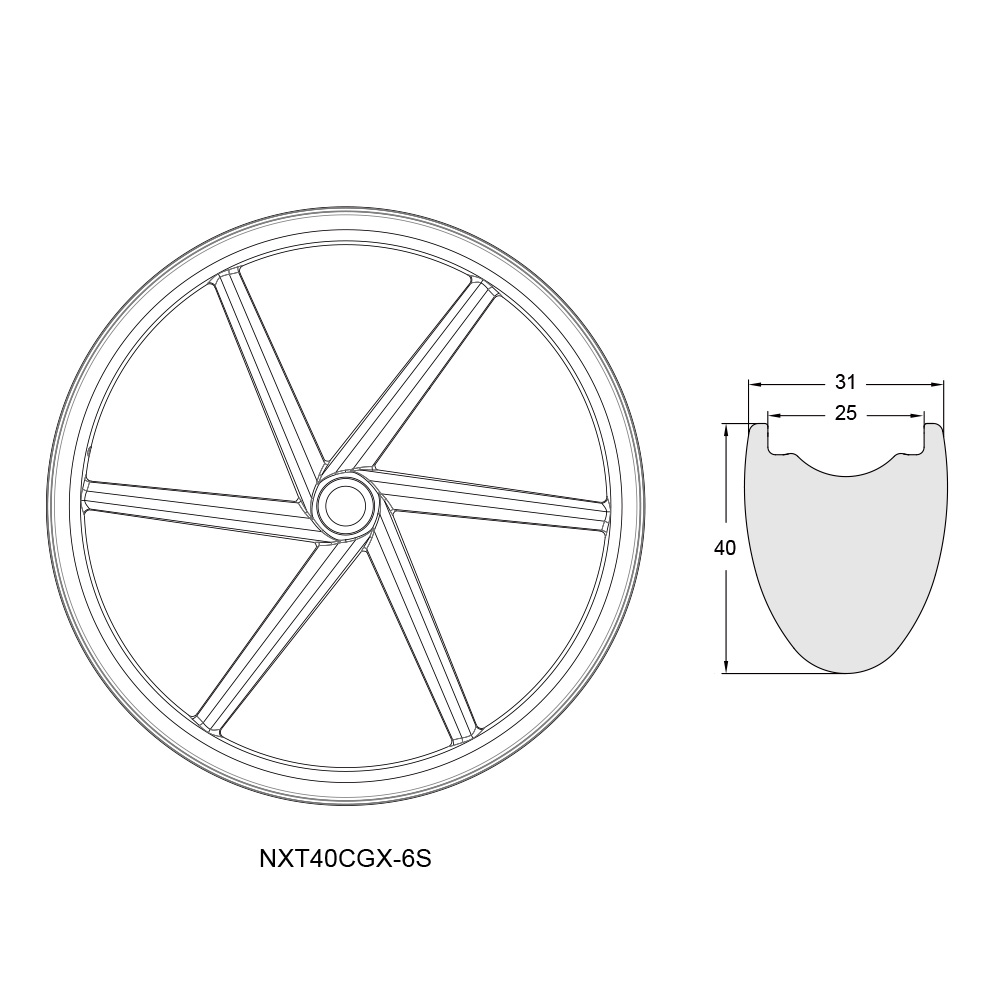

  • Size: 700C
  • External Wide: 31mm
  • Internal Width: 25mm
  • Rim Height: 40mm
  • Rim Lip Thickness: 3.0mm
  • Weight: 720g Front / 800g Rear (Upgrade 2024)
  • Valve Hole Diameter: 6.5mm (Presta)
  • Drain Holes: No (leave a note if you prefer Drain Holes)

Recommendation

  • Tire Size: 33 ~ 50mm Road / 33 ~ 40mm Cyclocross / 33 ~ 62mm Gravel
  • Tire Pressure: 29 ~ 61psi Road / 24 ~ 39psi Cyclocross / 22 ~ 58psi Gravel
  • Max System Weight: 144Kg

Appearance

  • Carbon Weave: UD
  • Finish: Matte / Glossy / Free Coating

Application

  • application: Road, Gravel, Cyclocross
