[Premium AM/Enduro] Asymmetric 29" Mountain Bicycle Carbon Rim 41mm 450g
-
Unit Price: 239 USD
- Price in reward points: 23900
![[Premium AM/Enduro] Asymmetric 29" Mountain Bicycle Carbon Rim 41mm 450g](https://www.nextie.com/image/cache/catalog/2022-products/premium-29/XM41-1000x1000.jpg "[Premium AM/Enduro] Asymmetric 29\" Mountain Bicycle Carbon Rim 41mm 450g")
Introduction
The carbon fiber bicycle industry has been innovating and advancing all the time. Being lighter and stronger has always been the pursuit of the professional bicycle industry,
In the year of 2017, we first tried to use Toray T800 carbon fiber material and to improve the production process, reducing a weight of 60g for the XC mountain rim, which is a huge improvement. In the years of 2020 to 2022, we upgraded the rim of NXT29XMA41 by newest premium layer-up system and production technology, the weight decreases 20g than the previous generation when the strength kept same. The test results showed a higher level strength than the previous generation.

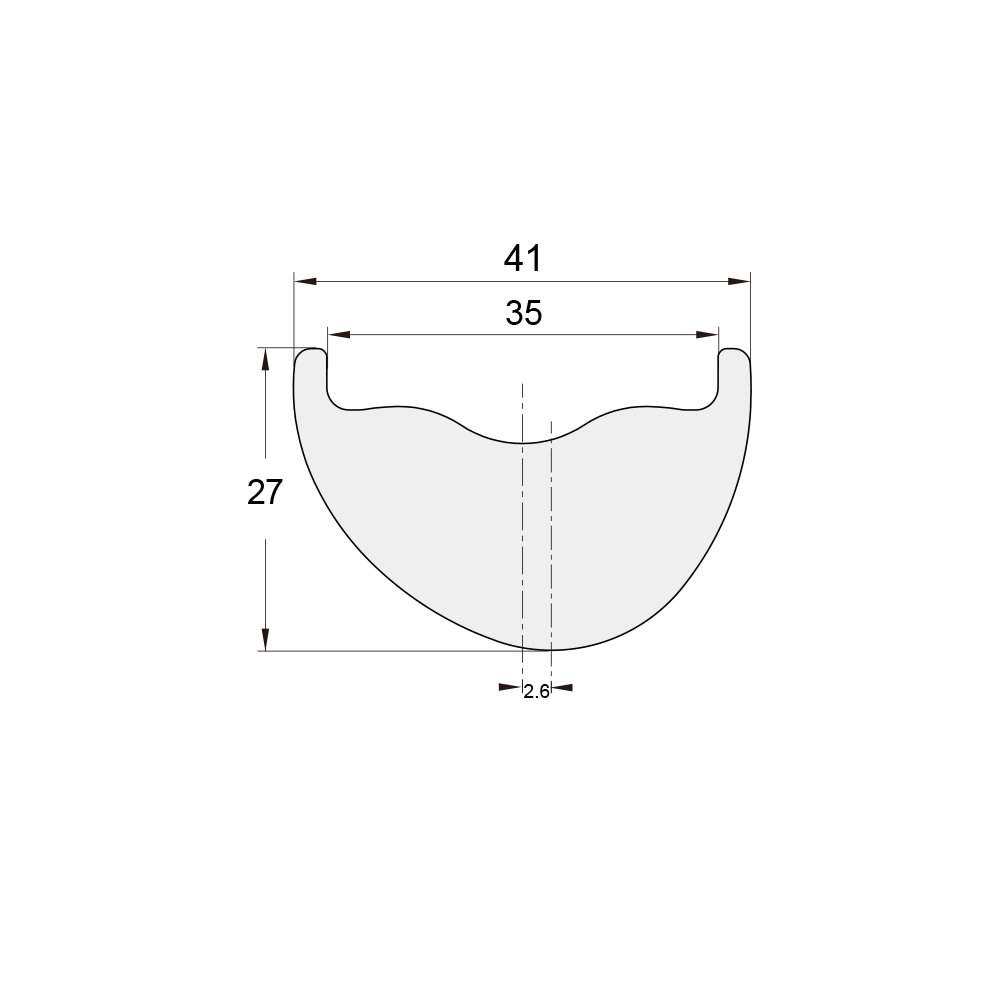

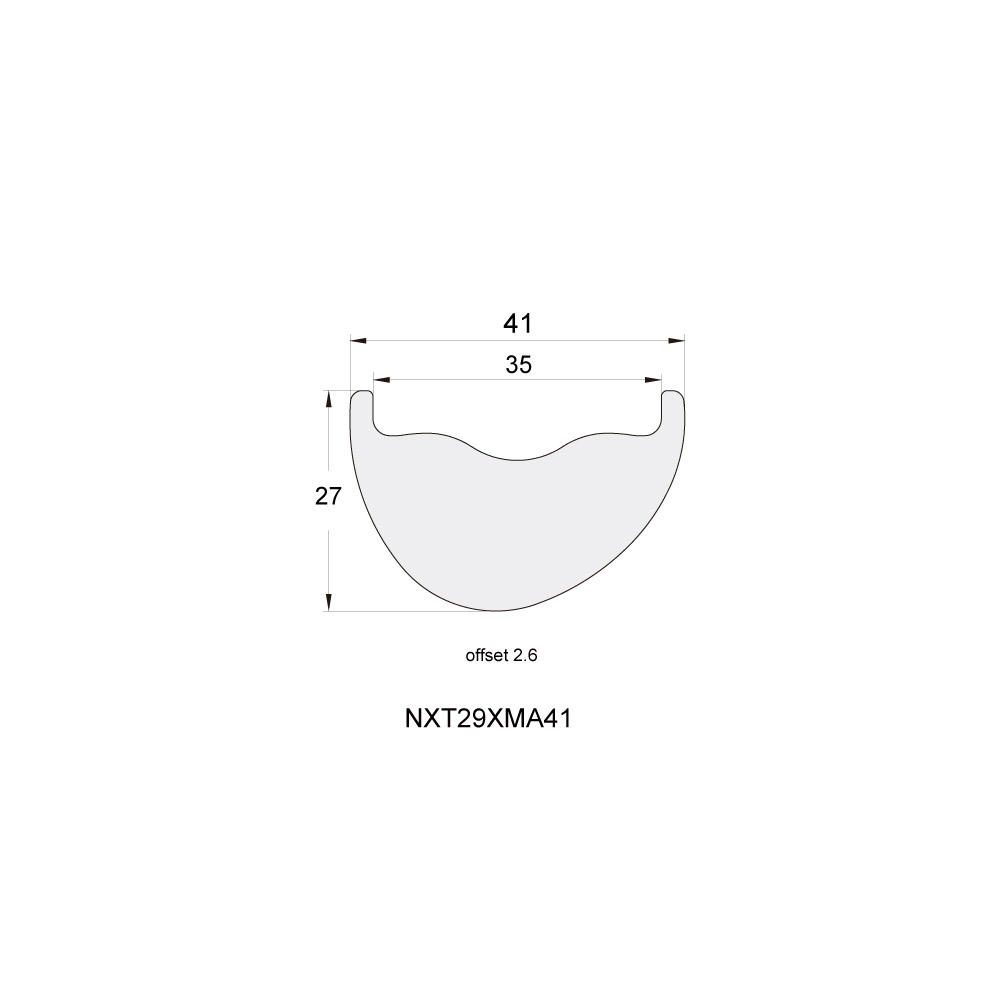

The weight of model NXT29XMA41 is only 450g for AM and 485g for Enduro. The profile drawing of this rim is as below.
This rim could be used for AM (All Mounatin), Trail and Enduro riding. The tire size for this model of rim is recommended at 2.2" ~ 3.0". The tire pressure is recommended at 25 ~ 50psi.
What's in the Box
Carbon Rim(s)
Documentation
Learn more
What is the difference between weaves UD, 3K and 12K?
What is Free Coating Manufacturing (FCM) process?
What is the Difference between Ultralight, Premium and Standard Edition?
What is ERD (Effective Rim Diameter)?
How much spoke tension should I use?
Basic
- Code: NXT29XMA41
- Rim Type: Mountain Bike (Clincher, Hookless)
- Materials: Toray T800 + T700 Carbon Fiber (Premium)
- Tubeless Compatible: Yes
- Drillings: 28, 32
- Warranty: 3 Years
Specification
- Size: 29"
- BSD (Bead Seated Diameter): 622mm
- ERD (Effective Rim Diameter): 587mm
- External Width: 41mm
- Internal Width: 35mm
- Rim Height: 27mm
- Weight: 450g (AM) / 485g (Enduro)
- Valve Hole Diameter: 6.5mm (Presta)
- Spoke Holes Diameter: 4.5mm
- Spoke Holes Angle: ± 6°
- Spoke Holes Offset: 2.6mm
- Assembly Hole Diameter: 7.5mm
Recommendation
- Tire Size: 2.2" ~ 3.0"
- Tire Pressure: 25 ~ 50psi
- Load Limit (One Wheel): 120kg
- Spoke Tension: 80~130kgf
Appearance
- Carbon Weave Availability: UD
- Finish: Free Coating / Matte / Glossy
Application
- application: Trail / AM / Enduro / Freeride
