DISCOUNT: [Premium AM] Asymmetric 27.5" Mountain Bicycle Carbon Rim 38mm 395g

  • Unit Price: 239 USD

  • Unit Price: 191 USD



Introduction

The carbon fiber bicycle industry has been innovating and advancing all the time. Being lighter and stronger has always been the pursuit of the professional bicycle industry,

In the year of 2017, we first tried to use Toray T800 carbon fiber material and to improve the production process, reducing a weight of 60g for the XC mountain rim, which is a huge improvement. In the year of 2022, we developed this model of rim NXT27XML38. The design of this model inherited from our previous generation the Wild Cat NXT27WC38 which was well known before. We decreased the rim height to 26mm. The shallower height improves the toughness of the entire wheel and makes riding more comfortable. With the newest premium layer-up system applied on this rim, the strength increased a lot. For the AM version, the positive stiffness test result gets 120J. For the Enduro version, the result gets 132J. That's superb.

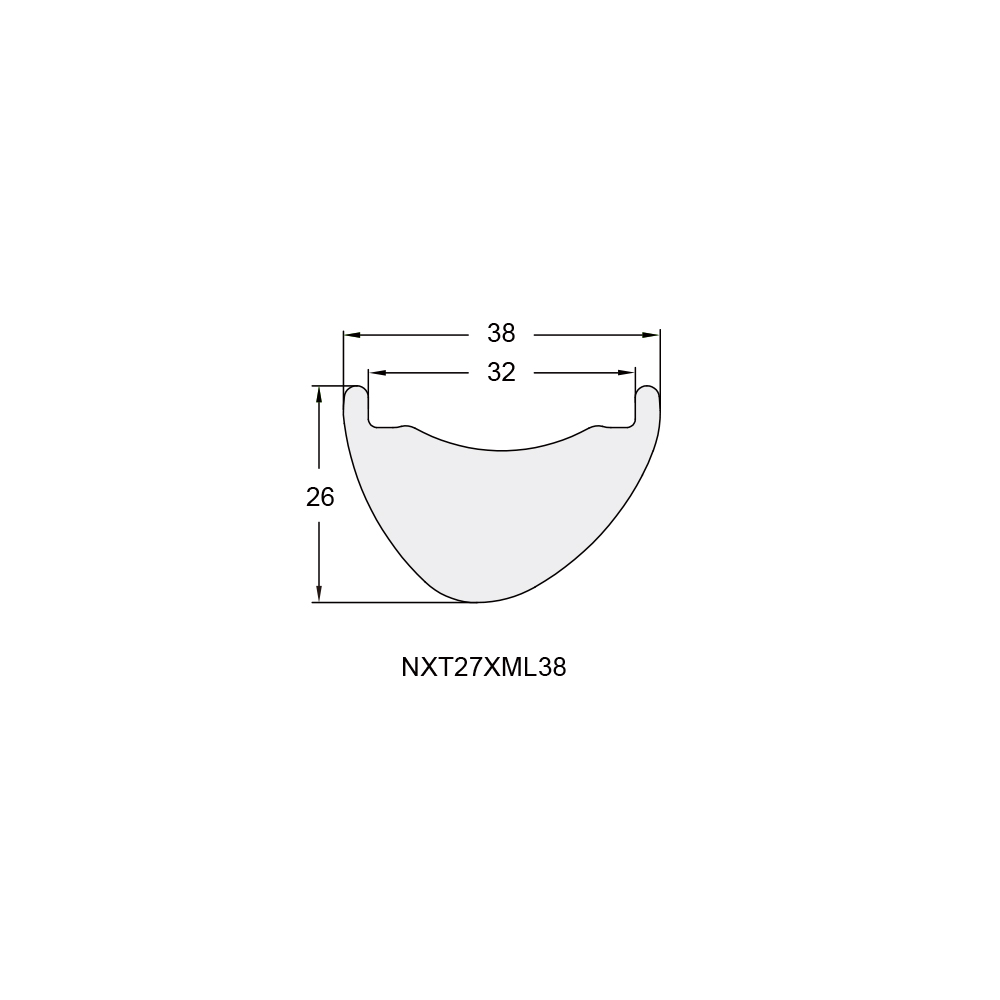

The weight of model NXT27XML38 is only 395g for AM and 425g for Enduro. The profile drawing of this rim is as below.

Ultralight Carbon Fiber Mountain Bicycle Rim NXT27XML38

This rim could be used for AM (All Mounatin), Trail and Enduro riding. The tire size for this model of rim is recommended at 2.15" ~ 2.75". The tire pressure is recommended at 21 ~ 35psi.


What's in the Box

Carbon Rim(s)

Documentation


Learn more

What is the difference between weaves UD, 3K and 12K?

What is Free Coating Manufacturing (FCM) process?

What is the Difference between Ultralight, Premium and Standard Edition?

What is ERD (Effective Rim Diameter)?

How much spoke tension should I use?


Basic

  • Code: NXT27XML38
  • Rim Type: Mountain Bike (Clincher, Hookless)
  • Materials: Toray T800 + T700 Carbon Fibers
  • Edition: Premium Edition
  • ASTM Classification: Condition 4
  • Warranty: 3 Years
  • Release Time: October 2022

Specification

  • Size: 27.5" / 650B
  • BSD (Bead Seated Diameter): 584mm
  • ERD (Effective Rim Diameter): 551mm
  • Drillings: 32
  • External Width: 38mm
  • Internal Width: 32mm
  • Rim Height: 26mm
  • Weight: 395g
  • Valve Hole Diameter: 6.5mm (Presta)
  • Spoke Holes Diameter: 4.5mm
  • Spoke Holes Angle: ± 6°
  • Spoke Holes Offset: 2.6mm
  • Assembly Hole Diameter: 7.5mm
  • Drain Holes: No (leave a note if you prefer Drain Holes)
  • Tubeless Compatible: Yes

Recommendation

  • Tire Size: 2.15 ~ 2.9"
  • Tire Pressure: 21 ~ 35psi
  • Spoke Tension: 100 ~ 130kgf
  • Max System Weight: 132Kg

Appearance

  • Carbon Weave Availability: UD
  • Finish: Matte

Application

  • application: Trail, All Mountain, Big Mountain, Freeride
