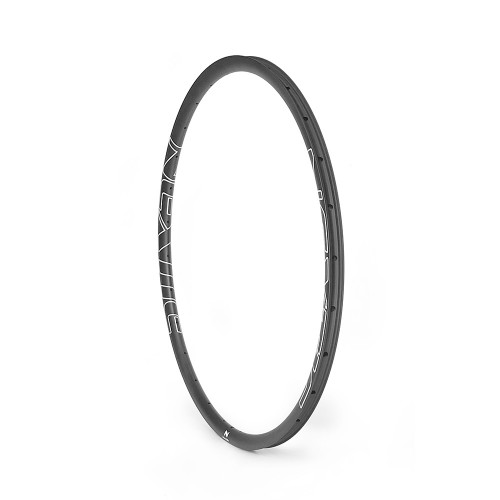

DISCOUNT: [Premium XC] 27.5" Mountain Bicycle Carbon Rim 24mm 285g

Basic

• Code: NXT27XM24U
• Rim Type: Clincher (Hookless)
• Materials: Toray T800 + T700 Carbon Fibers
• Warranty: 3 Years

Specification

• Size: 27.5" / 650B
• BSD (Bead Seated Diameter): 584mm
• ERD (Effective Rim Diameter): 552mm
• Drillings: 24

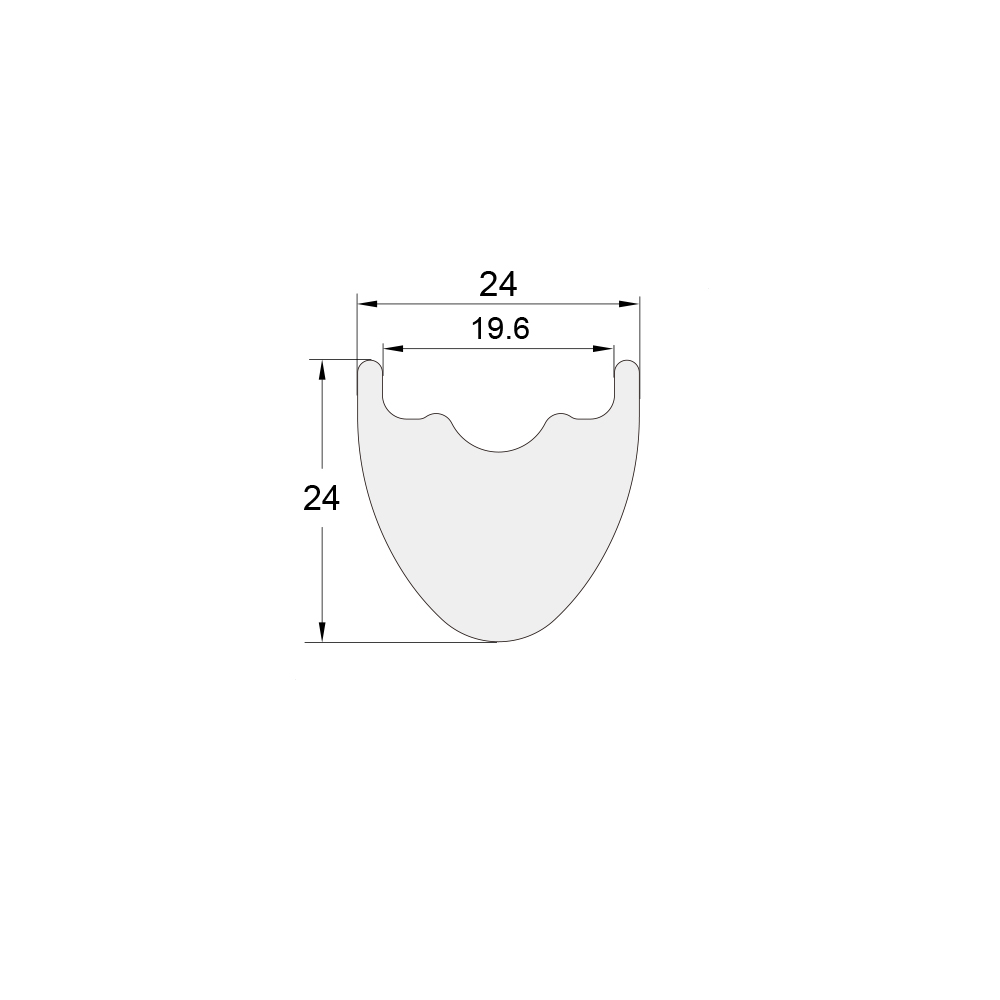

• External Width: 24mm
• Internal Width: 19.6mm
• Rim Height: 24mm
• Weight: 285g (reinforced)
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Spoke Holes Angle: ± 6°
• Assembly Hole Diameter: 7.5mm
• Tubeless Compatible: Yes

Recommendation

• Tire Size: 1.25" ~ 1.85"
• Tire Pressure: 25 ~ 40psi
• Spoke Tension: 100 ~ 120kgf
• Max System Weight: 100Kg

Appearance

• Carbon Weave Availability: UD
• Finish: Matte

Application

• application: XC / Marathon / Trail
