[Disc Wide] Carbon Fiber Road Bicycle Disc Wheel (Rear) 980g

  • Unit Price: 1,680 USD

  • Price in reward points: 168000



Over the years, the field of road bicycles has been developing and changing, especially road bicycle wheels, which directly reflect the cyclists' adaptation to different riding conditions.

NEXTIE always presents the best products to riders. In the years of 2023-2024, we have developed two ultra-light models of aero disc wheels, the classic model with internal width of 20mm and the wide model with internal width of 22mm.The lenticular disc sides provide extra speed in any crosswind, and the toroidal section near the tire reduces turbulence where the airflow leaves the wheel.

This carbon wheel of NXT22DRX is developed as the ideal rear disc wheel for road and time trail bike. It is 28mm external width and 22mm internal width.

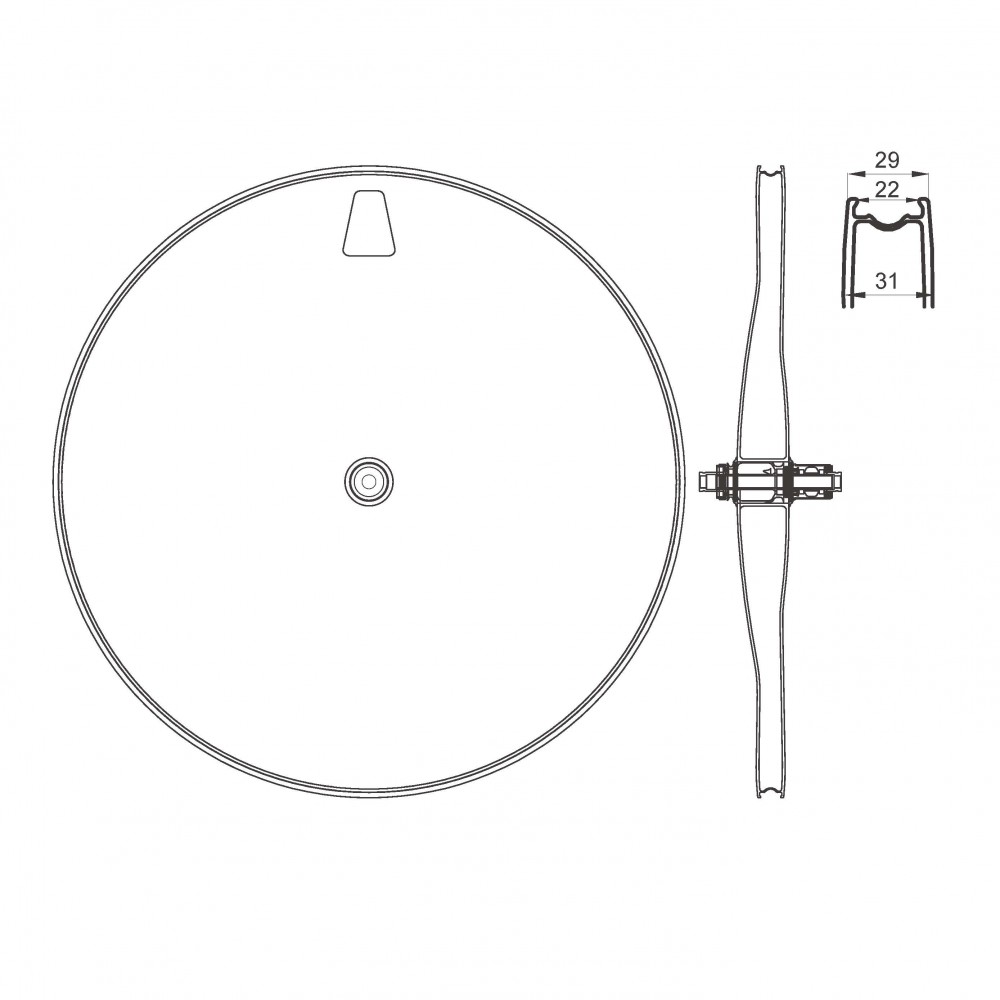

The weight is only 980g. The profile drawing is as below.

wide aero carbon disc wheel 28mm ultralight

The tire size for this model of rim is recommended at 26 ~ 55mm. The tire pressure is recommended at 70 ~ 100psi.


Advantage of Wider Wheels

Wide rims mean riding lighter, smaller performance tires with cushiony, high air volume and firm surface grip. Rolling resistance is lower with wider tires. Cornering grip is greatly improved. Ride comfort is greatly increased.


Aerodynamic Optimized Design

Nowadays, aerodynamic performance is one of the key factors considered when racing cyclists purchase new equipment, as the aerodynamic drag is known to be the main source of losses in cycling. The aerodynamic optimization of bicycle wheels can lead to decisive gains in running pace. For all of our CRX carbon rims, they have an optimized cross section. Please also note that choosing an appropriately sized tire for an aerodynamically optimized rim is also crucial to reducing air resistance and increasing riding speed.


Tubeless-Compatible Design

Lower rolling resistance. By eliminating the inner-tube, the friction between tire and tube is also eliminated, allowing the tire roll, flex, and conform to the road with greater efficiency.

Flat less, ride more. Flat tires are a buzz-kill. With a little sealant you can eliminate nearly all flats that would have been caused by an intrusive thorn or piece of debris.

Run the Best Pressure. Tubeless means you can run the pressure you want to maximize comfort, traction, and rolling efficiency. Visit our tire pressure page to dial in your best tire pressure.


What's in the Box

Carbon Disc Wheel

Documentation


Learn more

What is the difference between weaves UD, 3K and 12K?

What is Free Coating Manufacturing (FCM) process?

What is the Difference between Ultralight, Premium and Standard Edition?

What is ERD (Effective Rim Diameter)?


Basic

  • Code: NXT22DRX
  • Rim Type: Clincher (Tubeless compatible)
  • Materials: Toray T800+T700 Carbon Fiber (Premium Edition)
  • Tubeless Compatible: Yes
  • Warranty: 3 Years
  • Release Time: March 2024

Specification

  • Size: 700C
  • BSD (Bead Seated Diameter): 622mm
  • External Width: 29mm
  • Internal Width: 22mm
  • Weight: 980g
  • Valve Hole Diameter: 6.5mm (Presta)
  • Drain Holes: No (leave a note if you prefer Drain Holes)
  • DT350 Disc Brake: Rear, 12x142mm Axle Thru, Ratchet 18T
  • DT240 Disc Brake: Rear, 12x142mm Axle Thru, Ratchet EXP 36T

Recommendation

  • Tire Size: 26 ~ 49mm
  • Tire Pressure: 33 ~ 98 psi
  • Max System Weight: 200Kg

Appearance

  • Weave: 8-Segment Radial / 12K / 18K / Full Black
  • Finish: Free Coating / Matte / Glossy

Application

  • application: Road / Triathlon / TT / Cyclocross
