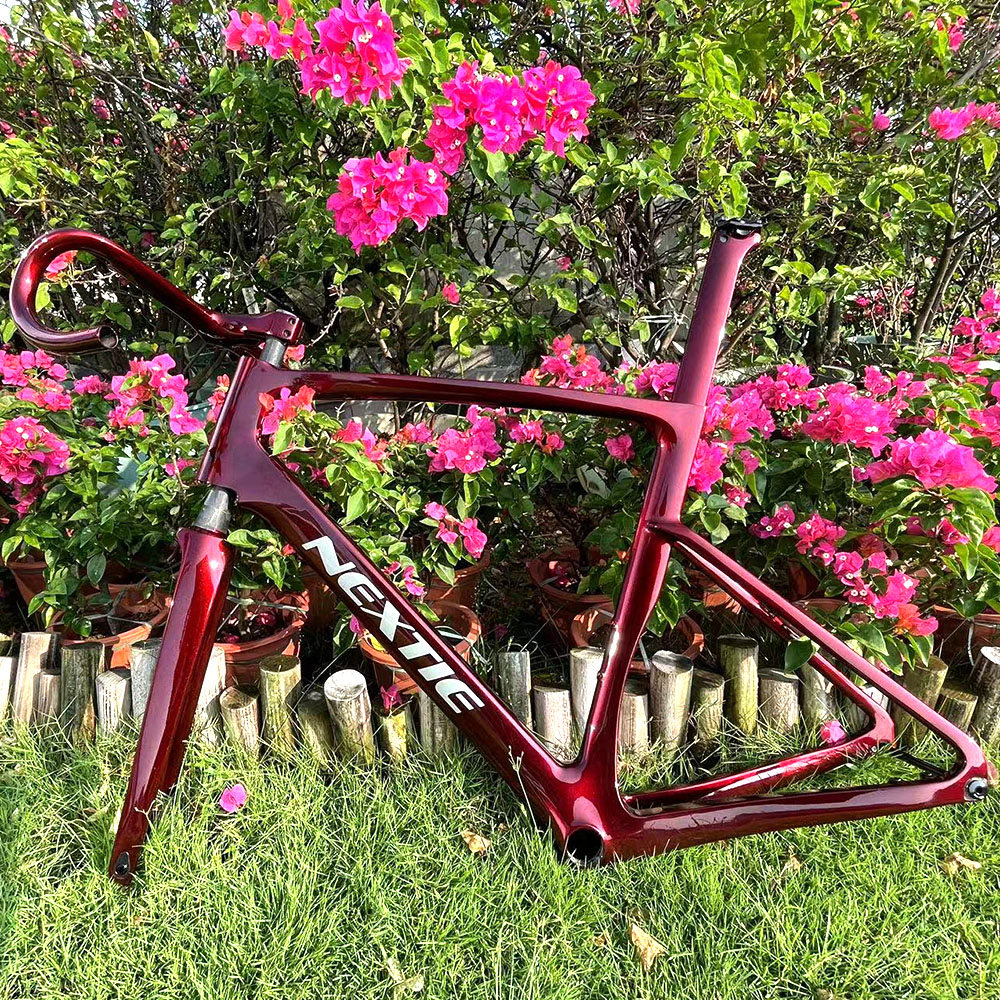

[Frameset] Disc Brake Road Bike Carbon Fiber Frameset 100/142mm from 912g
-
Unit Price: 1,099.0 USD
- Price in reward points: 109900
![[Frameset] Disc Brake Road Bike Carbon Fiber Frameset 100/142mm from 912g](https://www.nextie.com/image/cache/catalog/3-side/Accessory/FRAME/NXT-R2-3-1000x1000.jpg "[Frameset] Disc Brake Road Bike Carbon Fiber Frameset 100/142mm from 912g")
![[Frameset] Disc Brake Road Bike Carbon Fiber Frameset 100/142mm from 912g](https://www.nextie.com/image/cache/catalog/2024-image/product/R2-Metal-Red-1000x1000.jpg "[Frameset] Disc Brake Road Bike Carbon Fiber Frameset 100/142mm from 912g")
Introduction
Geometry
Frame Size Chart
| Size | 46 | 49 | 51 | 53 | 56 |
| Seat Tube Length (A) | 460mm | 490mm | 510mm | 530mm | 560mm |
| Seat Tube Angle (B) | 75.3° | 74° | 74° | 73° | 73° |
| Top Tube Length (C) | 500.2mm | 524mm | 535.1mm | 561.4mm | 577.3mm |
| Head Tube Length (D) | 115mm | 123mm | 142mm | 167mm | 193mm |
| Head Tube Angle (E) | 71.3° | 72.5° | 72.5° | 72.5° | 73° |
| Fork Rake/Offset (F) | 46mm | 46mm | 46mm | 46mm | 46mm |
| Wheelbase (H) | 967.3mm | 968.4mm | 980mm | 995mm | 1008mm |
| Chainstay length (I) | 410mm | 410mm | 410mm | 410mm | 410mm |
| BB Drop (J) | 73mm | 72mm | 72mm | 72mm | 70mm |
| Stack (K) | 523.3mm | 534.1mm | 552.2mm | 576.3mm | 600.7mm |
| Reach (L) | 362.9mm | 370.8mm | 376.7mm | 385.2mm | 393.7mm |
| Fork Length, Full (M) | 375mm | 375mm | 375mm | 375mm | 375mm |
| Handlebar Width (N) | 380mm | 400mm | 400mm | 420mm | 420mm |
| Stem Length (O) | 80mm | 90mm | 100mm | 110mm | 120mm |
| Crank Length (P) | 165mm | 165mm | 170mm | 170mm | 172.5mm |
| Front Center (R) | 568.6mm | 569.3mm | 580.9mm | 595.7mm | 608mm |
| Standover Height (S) | 756.4mm | 776.3mm | 795mm | 820.2mm | 849.6mm |
| Seatpost Length (T) | 300mm | 300mm | 300mm | 350mm | 350mm |
| Frame Weight | 912g | 926g | 932g | 940g | 952g |
| Fork Weight | 365g | 365g | 365g | 365g | 365g |
| Recommended Rider Height | 155 ~ 165cm | 165 ~ 175cm | 170 ~ 180cm | 175 ~ 185cm | 180 ~ 195cm |
What's in the Box
1 x Frame
1 x Fork
1 x Seatpost
1 x Integrated Handlebar
1 x Headset
1 x Hanger
2 x Thru Axles
Documentation
Basic
- Code: R2
- Materials: Carbon Fiber
- Warranty: 3 years
- Includings: Frame, Fork, Seatpost, Handlebar, Headsets, Thru Axles, Hanger
Specification
- Bottom Bracket: BB86
- Brake: Flat mount 140mm or 160mm
- Cable Routing: Internal Cable Routing (For RB/FD/RD)
- Headtube: 1-1/2" / 1-1/2"
- Max Load: 250kg
- O.L.D: Front 100x12mm, Rear 142x12mm
- Offset: 46mm
- Size: 46, 49, 51, 53, 56cm
- Tyre clearance: Max: 700*30C
- Cable Plug: Mechanical and DI2 (2 in 1)
- Max Clainring: 53-39T
- Weight: Frame 912g (Size 49), Fork 365g
Application
- application: Road, Triathlon, Cyclocross, Dirt, Gravel, and Adventure riding.
